Description
Product Overview

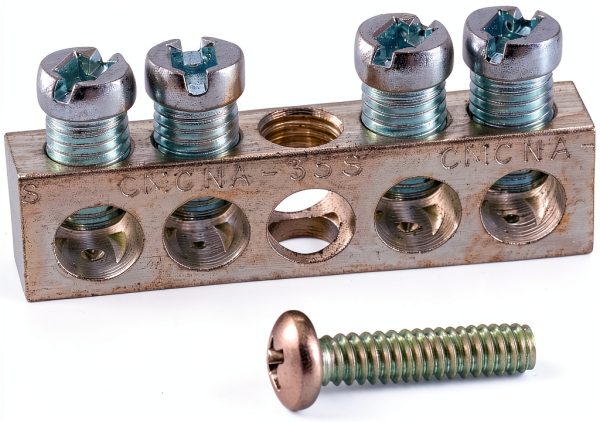

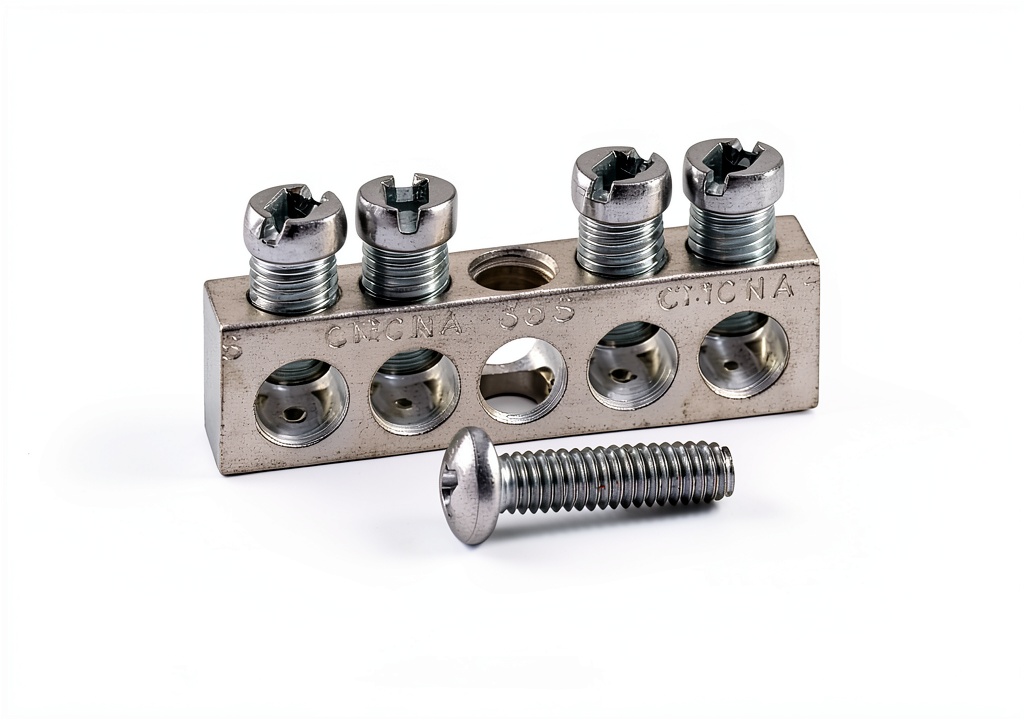

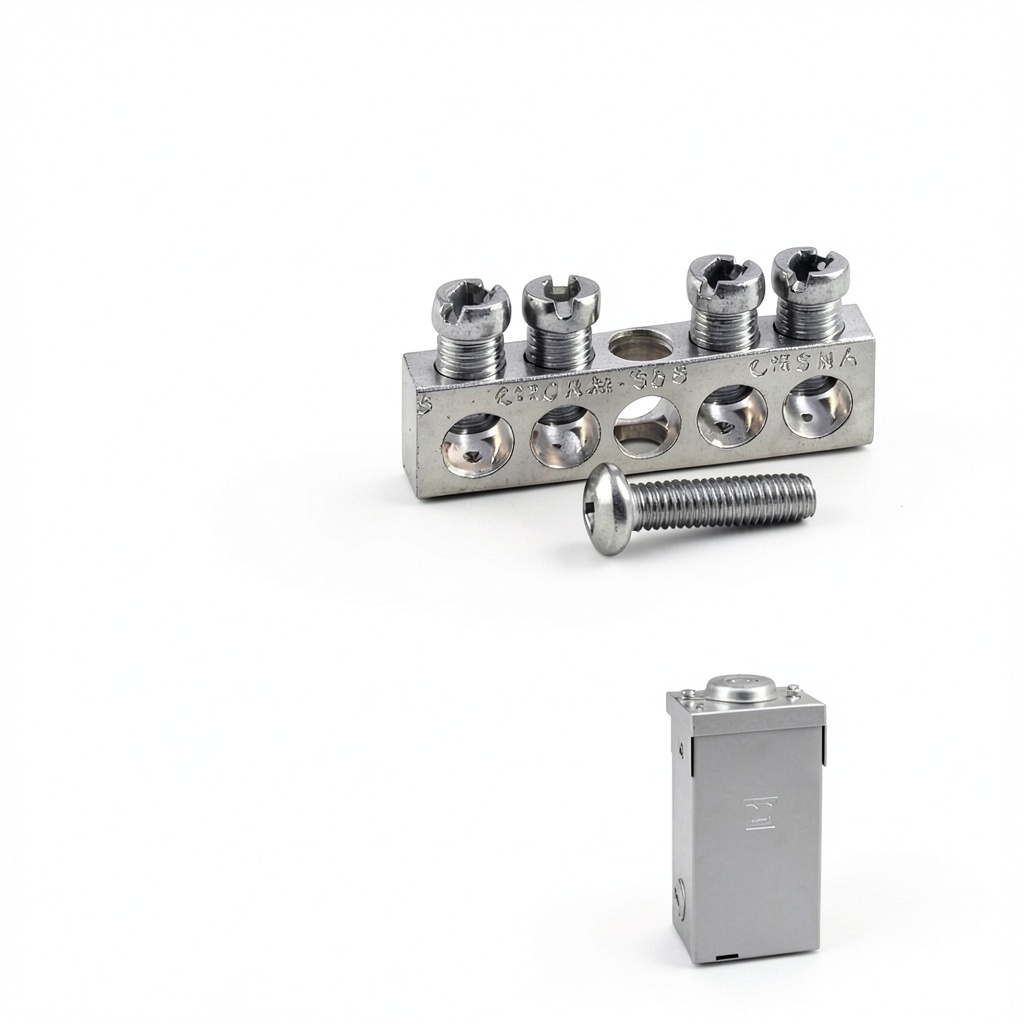

The Square D by Schneider Electric PK4GTACP 4-terminal ground bar kit is engineered for reliable electrical grounding applications. This aluminum ground bar features four screw-type terminals capable of handling 70 amps current rating. With compact dimensions of 2 inches wide by 2 inches high and triangular shape, it efficiently organizes grounding wires in electrical panels. The silver aluminum construction provides excellent conductivity while resisting corrosion. Designed specifically for Square D load centers, CSED devices, and NQOD/NF panel boards, this ground bar kit ensures proper electrical safety and code compliance.
Usage
This ground bar kit is essential for residential and commercial electrical installations where proper grounding is required. Electricians use it in load centers to consolidate ground wires from multiple circuits, while DIY homeowners install it during electrical panel upgrades or new construction. The kit is particularly valuable in Square D panel boards where it feeds wires directly to the neutral bar, creating a safe and organized grounding system. Its combination mount design allows flexible installation in various electrical enclosures, making it suitable for both new installations and retrofit projects.
Why Choose Us
Square D by Schneider Electric represents over a century of electrical innovation and reliability. This ground bar kit benefits from precision engineering and rigorous quality testing to meet industry standards. The aluminum construction ensures optimal conductivity while maintaining durability, and the screw terminals provide secure connections that won’t loosen over time. As a leader in electrical safety products, Schneider Electric backs this ground bar with warranty protection, giving you confidence in every installation. The compact design saves valuable space in electrical panels while maintaining full functionality.
Key Features
- Four screw terminals for secure wire connections and easy installation
- 70-amp current rating ensures reliable performance under electrical loads
- Aluminum construction provides excellent conductivity and corrosion resistance
- Compact triangular design saves space in electrical panels and load centers
- Compatible with Square D load centers and panel boards for seamless integration
FAQ
What electrical panels is this ground bar compatible with?
This ground bar kit is designed specifically for Square D load centers, CSED devices, and NQOD/NF panel boards. It may not be compatible with other manufacturer’s electrical panels without proper adapters or modifications.
How many wires can each terminal accommodate?
Each screw terminal is designed to securely connect multiple grounding wires, though the exact number depends on wire gauge. Consult local electrical codes and the manufacturer’s specifications for specific wiring capacity guidelines.
Is professional installation required for this ground bar?
While experienced DIY enthusiasts can install this ground bar, we recommend professional installation by a licensed electrician to ensure proper grounding and compliance with electrical codes and safety standards.
What is the warranty coverage for this product?
Square D by Schneider Electric provides warranty protection for this ground bar kit. Specific warranty terms and duration can be found in the product documentation or by contacting Schneider Electric customer service.
Can this ground bar be used outdoors or in wet locations?
This ground bar is designed for indoor use in dry locations within electrical enclosures. For outdoor or wet location applications, additional weatherproof enclosures and proper sealing are required to maintain safety and performance.
